Catalog Number - 45099-108

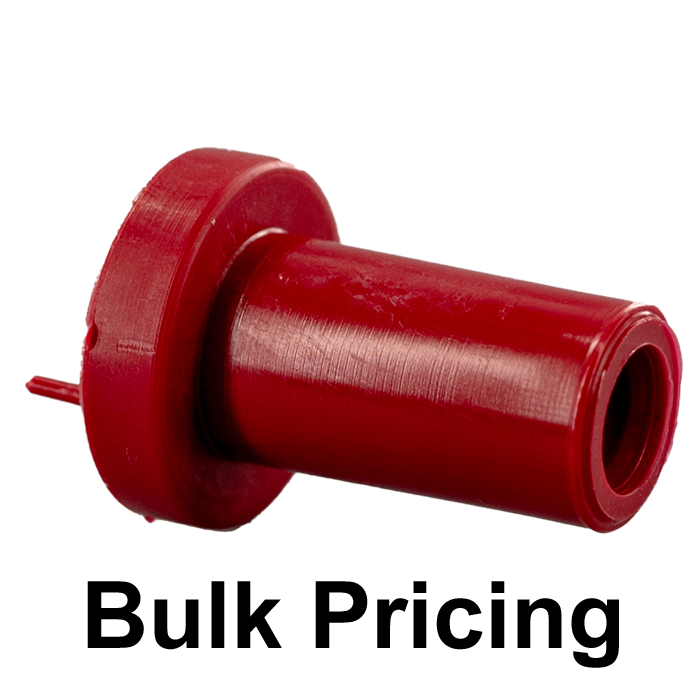

The 45099‑108 Polymer Tubing Flanging Drill is a precision replacement component designed for use with the MICROSOLV Flanging Tool, enabling accurate and repeatable cold flanging of polymer (plastic) tubing tips.

This drill features a 0.8 mm polymeric pin, engineered to provide controlled internal support during the flaring process. The use of a polymer pin is particularly advantageous when working with softer tubing materials, as it helps minimize deformation while ensuring a consistent and uniform flare geometry.

When used with the flanging tool, this drill produces mechanically formed (cold‑formed) flares, eliminating the need for heat and resulting in:

• Improved dimensional stability

• Reduced risk of tubing damage

• Consistent sealing surfaces for reliable connections

This configuration is optimized for general polymer tubing applications, including PTFE, FEP, PFA, and similar materials used in low‑pressure and fluid handling systems.

Why Choose the 0.8 mm Polymer Flanging Drill

This drill is typically selected when:

• Working with soft or semi‑soft polymer tubing

• A non‑metallic internal support is preferred during flaring

• Controlled, uniform flaring is needed without damaging tubing

• Reliable sealing performance is required in fluidic systems

The polymeric pin design helps reduce stress on the tubing during flaring while maintaining consistent geometry.

Key Features

Designed for Polymer Tubing

• Suitable for PTFE, FEP, PFA, and similar materials

• Ideal for soft or semi‑rigid tubing types

• Ensures consistent flaring performance

Polymeric Pin Construction

• 0.8 mm polymer pin

• Provides gentle internal support

• Reduces risk of tubing deformation

Compatible with Flanging Tool Systems

• Designed for MICROSOLV flanging tools

• Maintains tool precision and consistency

• Enables repeatable results

Cold‑Forming Flanging Method

• No heat required

• Produces stable, durable flares

• Minimizes variability and damage

Typical Applications

• Flanging polymer tubing (PTFE, FEP, PFA, etc.)

• Replacement of flanging tool components

• Preparation of tubing for low‑pressure connections

• Laboratory tubing assembly and maintenance

• Made‑to‑Order & Bulk Pricing Information

  This is a custom, made‑to‑order item.

  • Orders cannot be canceled once placed

  • Custom items are non‑returnable

  • Please contact Customer Service for formal quotation, lead time, and ordering assistance. Classification:

  • This item is classified as a CUSTOM ITEM. View our Custom Item policy.
